Hybrid VAE-Based Cyber Intrusion Detection in Rail Track SCADA

Benjamin Gyimah Boateng and Prof. Nii Attoh-Okine

Department of Civil and Environmental Engineering, University of Maryland, College Park, MD

1. BACKGROUND

Track geometry (gage, crosslevel, alignment, warp) is critical to rail safety and operation [1]. Modern railways use SCADA systems to support real-time communication and monitoring of distributed track geometry sensors [2].

The integration of Operational Technology (OT) and Information Technology (IT) rapidly expands the cyber-physical attack surface. False Data Injection (FDI) attacks can stealthily mask critical defects, drastically increasing safety risks across the network [3].

2. RESEARCH GAP

  • Rule-based Intrusion Detection Systems (IDS) struggle significantly with subtle, multivariate FDI.
  • Most FDI studies focus on power grids or generic SCADA environments, not rail track geometry.
  • Few adaptive, rail-specific FDI detection frameworks exist that are capable of early detection.

3. RESEARCH CONTRIBUTION

  • Developed a Hybrid VAE+MAD unsupervised framework for FDI detection.
  • Comparison with Isolation Forest (IF) and baseline VAE algorithms.
  • Percentile vs Cross-Validation thresholding evaluation.
  • Improved Detection at low injection level (2-5%).

4. PROJECT WORKFLOW

Synthetic FDI injections approximate, but do not fully replicate, real attacks. We propose an end-to-end framework for detecting multivariate FDI using Variational Autoencoders (VAE) and Median Absolute Deviation (MAD).

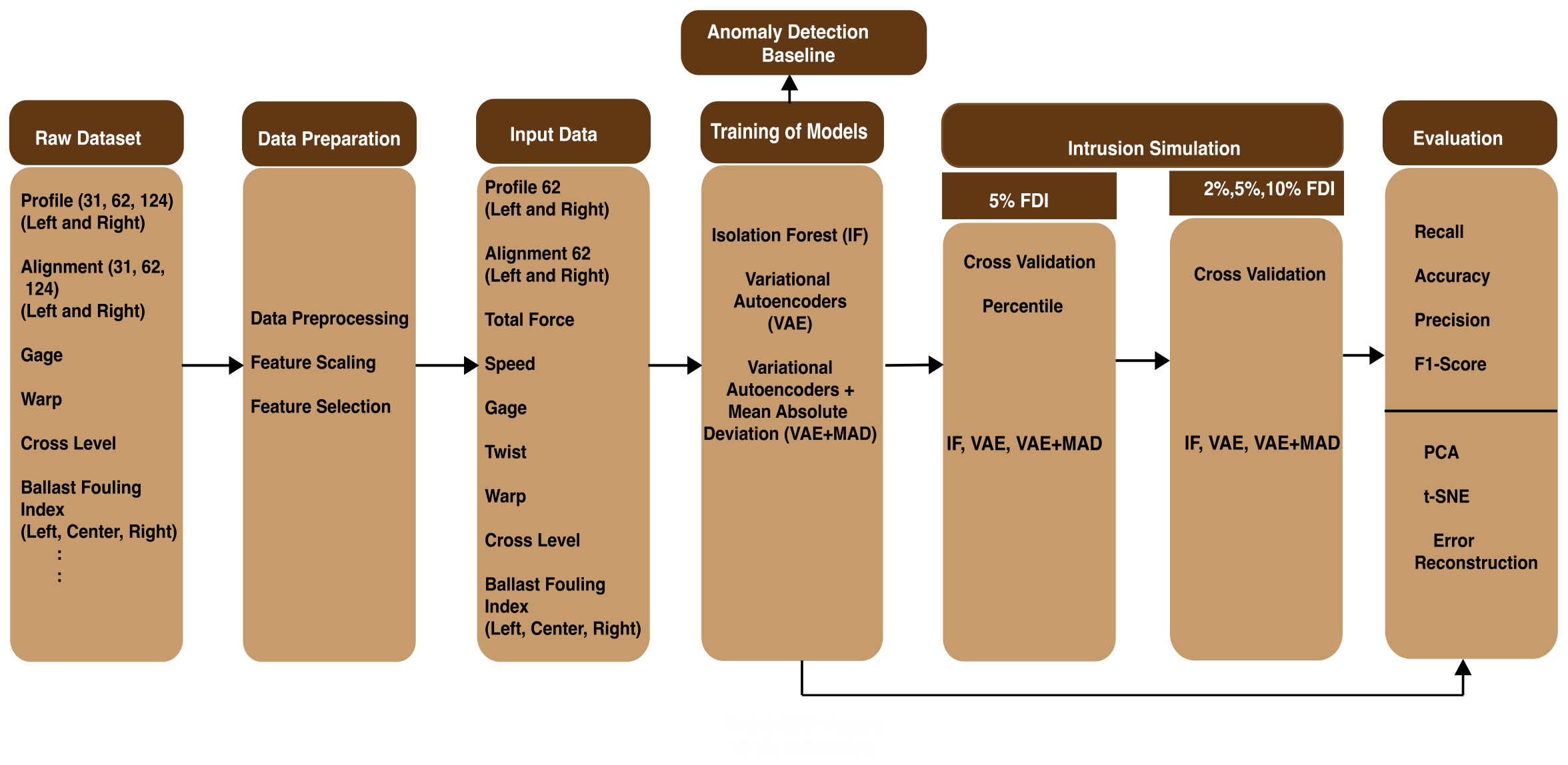

Fig. 2 End-to-end research workflow
Click to Zoom

Fig. 2 End-to-end research workflow

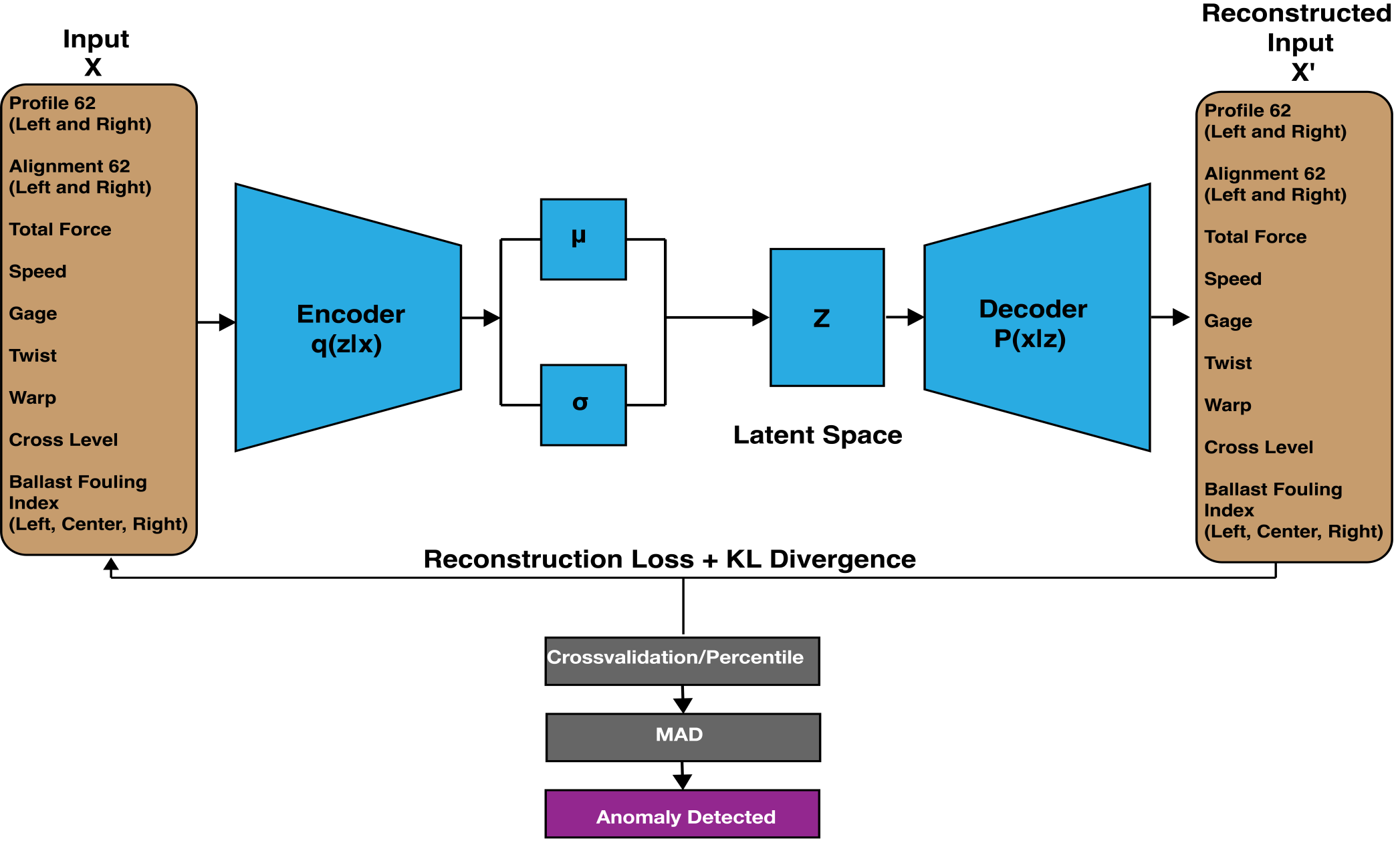

Fig. 3 VAE Architecture for the Research Workflow, Multivariate FDI
Click to Zoom

Fig. 3 VAE Architecture for the Research Workflow, Multivariate FDI

5. RESULTS AND DISCUSSION

Thresholding approaches affect detection robustness. Percentile vs. Cross-Validation thresholds are compared across multiple injection levels to assess the reliability of early warning detection.

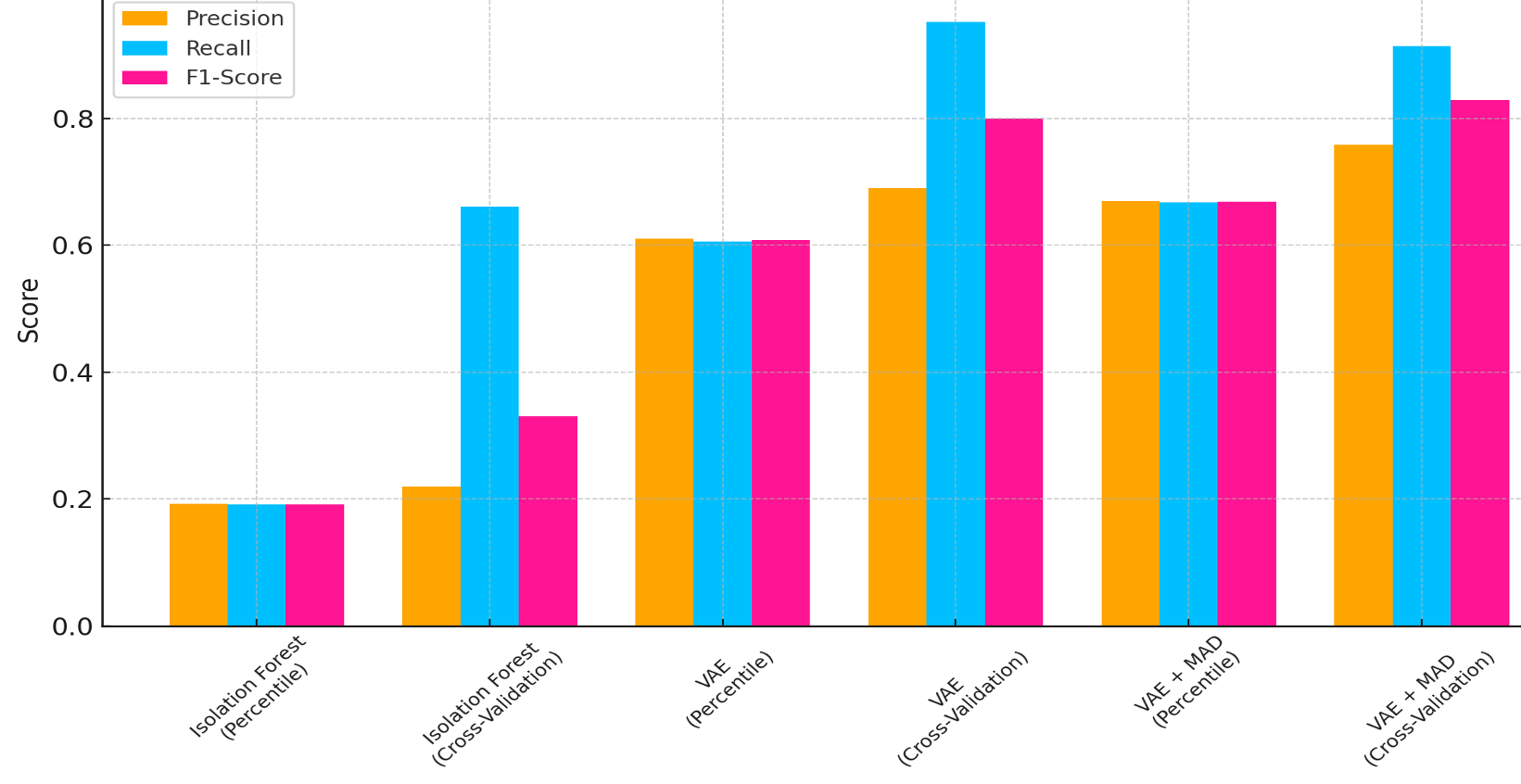

Percentile vs Cross-Validation Thresholding at 5% Injection
Click to Zoom

Fig. 4 Percentile vs Cross-Validation Thresholding at 5% Injection

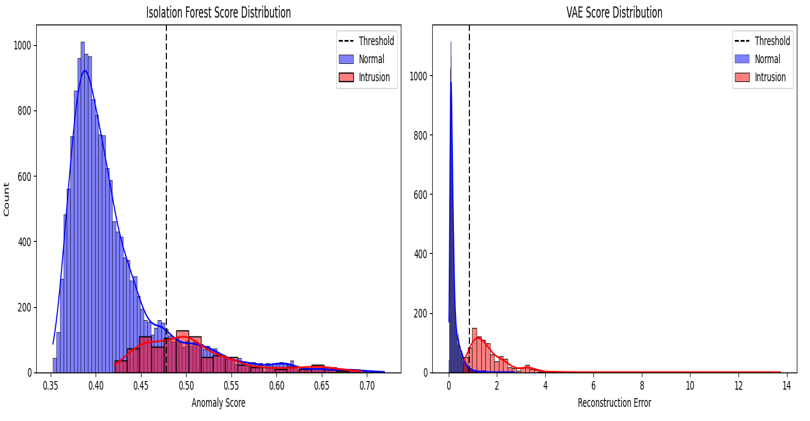

IF Anomaly Score
Click to Zoom

Fig. 5 IF Anomaly Score and VAE Reconstruction Error (RE) Score

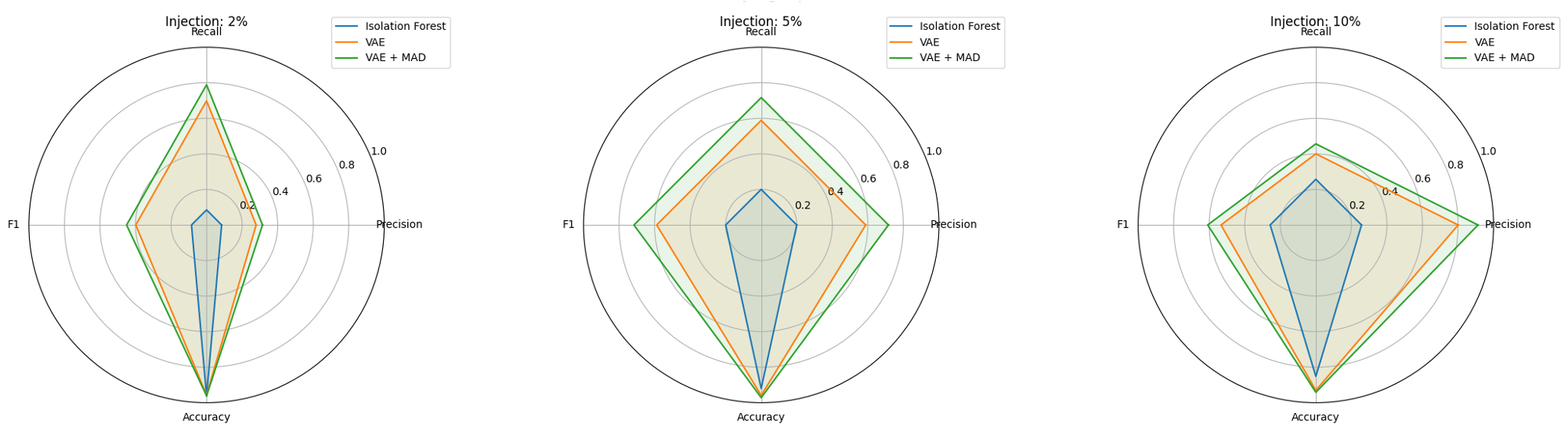

Performance Metrics of IF, VAE, VAE + MAD
Click to Zoom

Fig. 7 Performance Metrics of IF, VAE, VAE + MAD

6. CONCLUSION & FUTURE WORK

LIMITATION

Synthetic FDI injections approximate, but do not fully replicate, real attacks.

FUTURE WORK

LLM-assisted adaptive thresholding and automated intrusion reporting.

CONCLUSION

  • Hybrid VAE+MAD outperforms IF and baseline VAE across all FDI levels.
  • Adaptive (CV-based) thresholding is critical for reliable detection.
  • Effective detection was achieved even at 2% injection, enabling early warning.
  • Results support rail-specific, data-driven SCADA intrusion detection.
